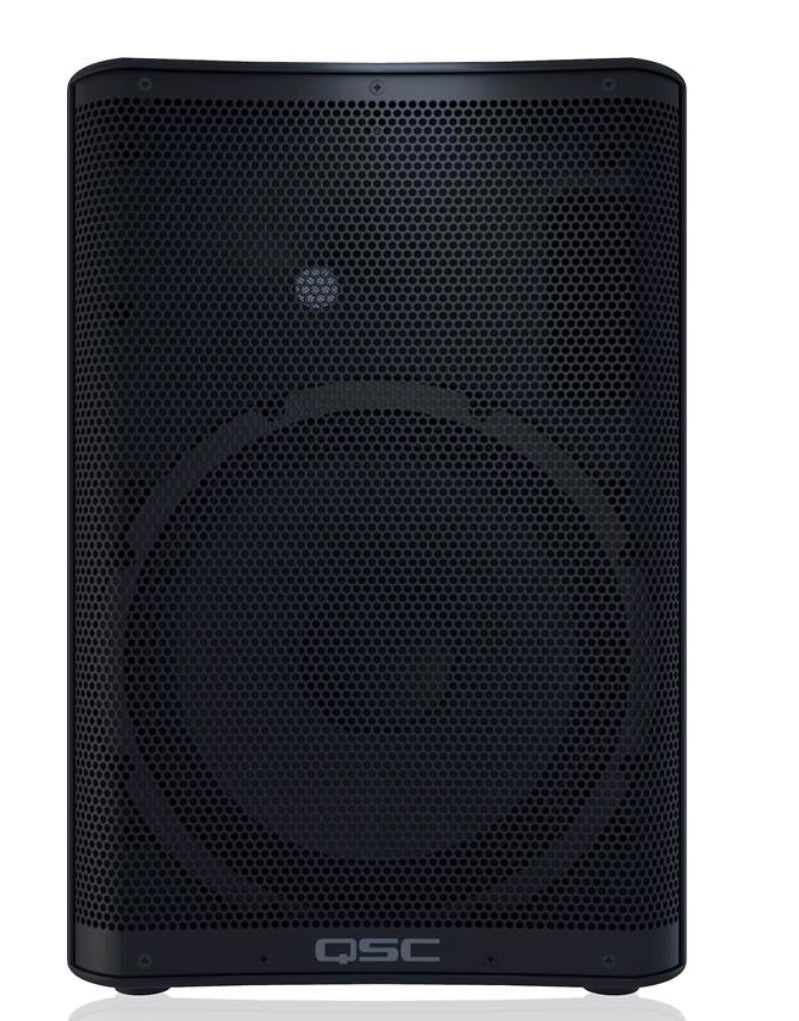

QSC CP12

Product info:

• 2-way powered PA speaker
• 12" woofer and 1.4" high-frequency compression driver
• 1000-watt Class D amplifier (peak: 800W to woofer, 200W to tweeter)
• maximum SPL: 126 dB peak
• frequency response: 49-20,000 Hz
• coverage: 75° axisymmetric

Connections and Controls:

• 3 input mixer with gain controls
  • Ch A: microphone/line XLR-1/4" TRS combo
  • Ch B: Hi-Z/line XLR-1/4" TRS combo
  • Ch C: stereo 1/8" (3.5 mm) TRS
• XLR output: mix (Ch A + B + C)
• preset library includes Floor Monitor, Dance, Speech,
